10.2g/cm3 TZM Sheets Molybdenum Alloy For 2610C High Temperature Resistance Use
TZM is a kind of Molybdenum Alloy which has excellent high temperature properties formed by solution strengthening and carbide dispersion strengthening of Titanium, Zirconium and Carbon in Molybdenum.
TZM molybdenum alloy, as a high temperature structural and functional material, is widely used to make high temperature components such as Isothermal Forging Mold, X-ray Rotating Target, Ion Implanation equipments parts,Heat Shield for high temperature furnace, Piercing Point (Seamless Stainless Steel Tube), inner wall material for nuclear fusion reactor, Protective Tile and so on.
Specification
| Product name | TZM Sheets |
| Density | 10.2g/cm |
| Chemical composition | Mo+0.40~0.55%Ti+0.06~0.12%Zr+0.01~0.04%C |
| Application area: | Aerospace; aviation and other industries |
| Stess-relief temperature | one hour at 1095 to 1260° |
Applications of TZM:
TZM has good high temperature properties and mechanical properties, so TZM sheets is widely used in various high temperature fields. It is commonly used in the manufacture of electric vacuum devices and electric light source parts, and is suitable for the preparation of ion implantation parts.
As a high-temperature heating element and high-temperature structural parts, TZM sheets is often applied as the electrode of glass and refractory fiber industry. Working in 1300 ℃ glass melt, it has good performance and long service life. It is also often used as electrode in rare earth industry and is widely used. In addition, TZM rod can also be used in hot runner system to prepare various types of hot nozzles and hot runners.
Wide applications:
1.TZM sheets is characterized by high melting point, resist corrosion and conductivity, strong toughness. With low thermal expansion coefficient, steam pressure and fine mechanical properties, the TZM sheets is widely used in various fields:
1. Military Industry: distribution valve body of torpedo engine, rocket nozzle, gas pipeline and throat liner;
2. Used as principle axis for glass furnace stirrer of color picture tube; buy molybdenum alloy TZM sheets
3. Piercing plug for die casting mould and seamless tube made from black and nonferrous metals;
4. Hot runner in injection molding machine; buy molybdenum alloy TZM sheets
5. Cathode tube, grid electrode, high-voltage rectifier components in electronic industry;
6. Radiation shield, support frame, heat exchanger, rail bar in nuclear equipments;
7. Furnace wall, heat shield in high temperature furnace and hot isostatic press.
Physical performance comparison between TZM alloy and Pure Molybdenum
| Material | Density (g/cm3) | Melting Point(℃) | boiling point(℃) |
| TZM (Ti0.5/Zr0.1) | 10.22 | 2617 | 4612 |
| Mo | 10.29 | 2610 | 5560 |
| Mechanical property (TZM) | Elongation(%) | Elastic modulus(GPa) | Yield Strength (Mpa) | Tensile Strength(Mpa) | Fracture toughness(MP·m1/2) |
| Value | <20 | 320 | 560~1150 | 685 | 5.8~29.6 |

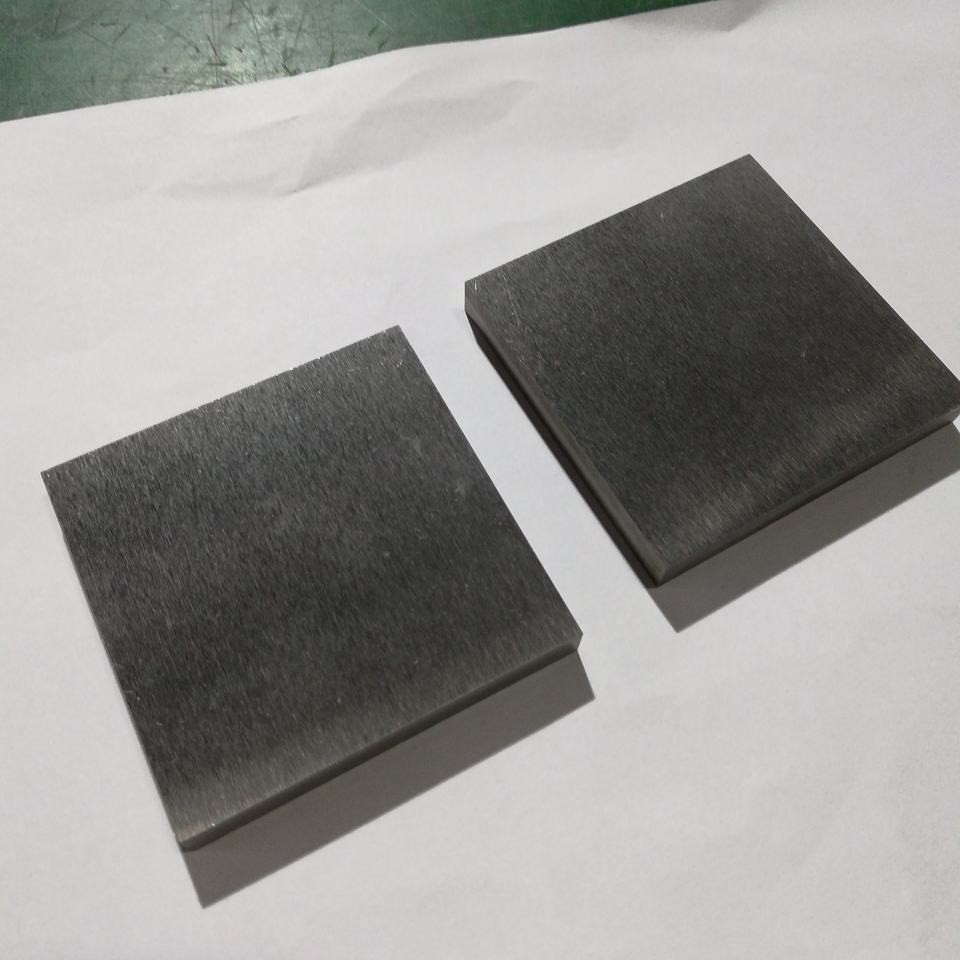

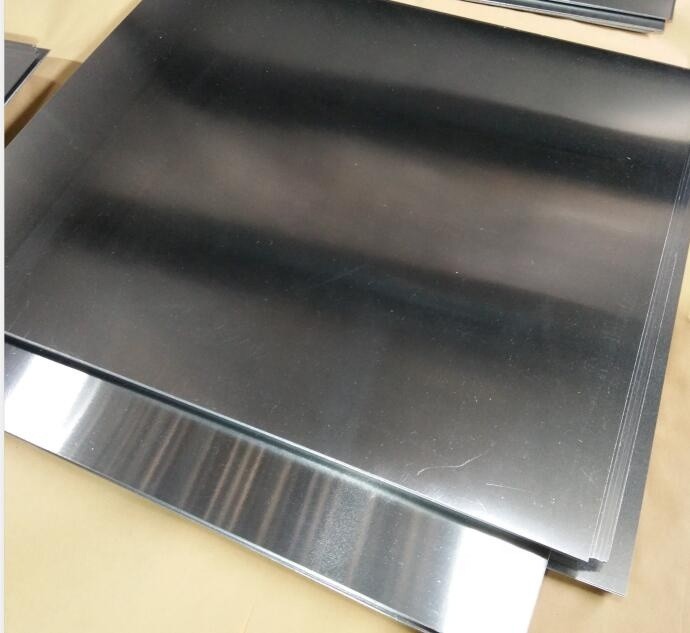

TZM sheet and plate specification:(0.1-40)mm x(50-600)mm x(100-1500)mm
TZM sheet and plate application:

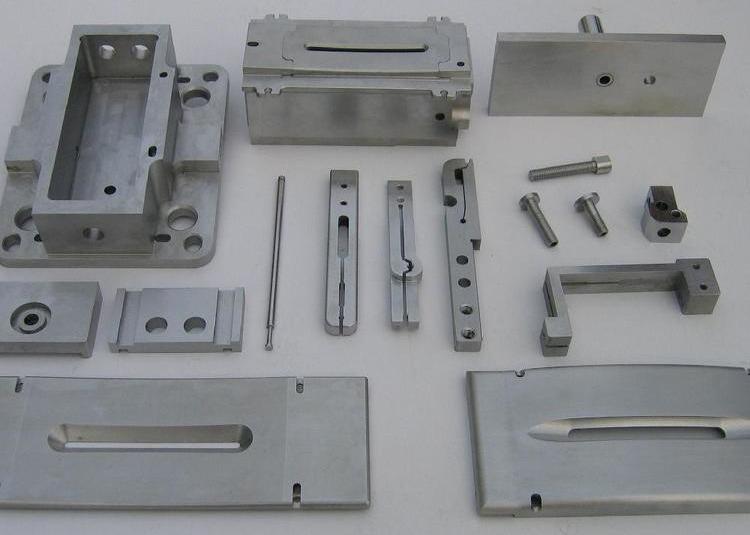

Products are used as arc chamber parts in ion implanter,high temperature furnace construction,
die casting mold and other fields.
Pls contact us freely if any need of TZM alloy in shape of rod,wire,sheet,plate or custom machined parts.
|
|
