99.95% Titanium Zirconium Molybdenum TZM Alloy Machined Rods According To Drawing

Product Categories
Zhengzhou Sanhui Refractory Metal Co., Ltd.
Contact Now

99.95% Titanium Zirconium Molybdenum TZM Alloy Machined Rods According To Drawing

Brand Name : Sanhui

Model Number : TZM

Certification : ISO9001

Place of Origin : China

MOQ : 10 Kilograms

Price : Negotiable

Payment Terms : T/T

Supply Ability : 5000 Kilograms per month

Delivery Time : 20 days after order

Packaging Details : Standard export plywood cases or according to customized packaging

Surface : Ground and clean

Dimension : Customized

Purity : Mo >99.95%

Density : 10.2g/cm3

Name : TZM Molybdenum bar

Application : Vacuum Furnace Molybdenum parts

Contact Now

99.95% Titanium Zirconium Molybdenum TZM Alloy Machined Rods According to Drawing

Specification

Product name
Molybdenum alloy TZM rod
Density
10.2g/cm
Chemical composition
Mo+0.40~0.55%Ti+0.06~0.12%Zr+0.01~0.04%C
Application area:
Aerospace; aviation and other industries
Stess-relief temperature
one hour at 1095 to 1260°

Applications of TZM:

TZM rod has good high temperature properties and mechanical properties, so TZM alloy is widely used in various high temperature fields. It is commonly used in the manufacture of electric vacuum devices and electric light source parts, and is suitable for the preparation of ion implantation parts.

As a high-temperature heating element and high-temperature structural parts, TZM alloy is often applied as the electrode of glass and refractory fiber industry. Working in 1300 ℃ glass melt, it has good performance and long service life. It is also often used as electrode in rare earth industry and is widely used. In addition, TZM rod can also be used in hot runner system to prepare various types of hot nozzles and hot runners.

Diameter

Length

Diameter Tolerance

Length Tolerance
0.08" ~ 0.40" <315" ±0.005" +0.08", -0
0.40" ~ 0.80" <118" ±0.010" +0.08", -0
0.80" ~ 4.00" <78" ±0.015" +0.08", -0
>4.00" <40" ±0.025" +0.08", -0

Physical performance comparison between TZM alloy and Pure Molybdenum

Material Density (g/cm3) Melting Point(℃) boiling point(℃)
TZM (Ti0.5/Zr0.1) 10.22 2617 4612
Mo 10.29 2610 5560

Mechanical property (TZM) Elongation(%) Elastic modulus(GPa) Yield Strength (Mpa) Tensile Strength(Mpa) Fracture toughness(MP·m1/2)
Value <20 320 560~1150 685 5.8~29.6

TZM alloy customized parts according to drawings are available.

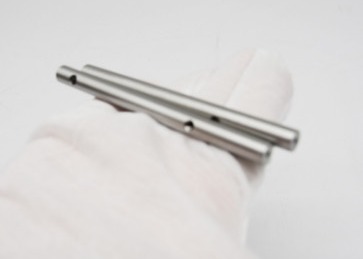

99.95% Titanium Zirconium Molybdenum TZM Alloy Machined Rods According To Drawing

99.95% Titanium Zirconium Molybdenum TZM Alloy Machined Rods According To Drawing
