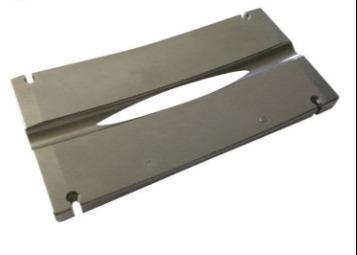

99.95% Molybdenum TZM Alloy Plate Processed Parts Final Machined Surface

Name: 9995 Molybdenum TZM Alloy Plate Processed Parts Final Machined Surface
Brand: Sanhui
Price: 50 USD

99.95% Molybdenum TZM Alloy Plate Processed Parts Final Machined Surface Manufactures

Brand Name : Sanhui

Model Number : TZM

Certification : ISO 9001:2008

Place of Origin : Henan, China

MOQ : 5 kgs

Price : USD 50-80 per kg

Payment Terms : D/A, D/P, T/T, Western Union

Supply Ability : 500kgs per month

Delivery Time : 15-20 days

Packaging Details : plywood case

Name : TZM Molybdenum Alloy Plates

Surface : Final machined surface

Chemical Composition : 0.50% Ti, 0.08% Zr ,0.02% C

Application : Hih-temperature furnace or glass field

Dimensions : as drawing

Material : Ti,Zr,Moly Alloy

Contact Now

99.95% Molybdenum Alloy TZM Plate Processed Parts Used in Ion Implantation

TZM Description:

TZM alloy is widely used in aerospace industry due to its excellent high temperature strength, high recrystallization temperature and good thermal conductivity.

TZM alloy also widely used in aviation and other fields, such as nozzle material, nozzle material, valve body and gas pipe

Channel materials, grid materials in electronic tubes, X-ray rotating anode parts, die-casting and extrusion molds, heaters and heat shields in high-temperature furnaces, ion implantation etc.

Physical performance comparison between TZM alloy and Pure Molybdenum

Material	Density (g/cm3)	Melting Point(℃)	boiling point(℃)
TZM (Ti0.5/Zr0.1)	10.22	2617	4612
Mo	10.29	2610	5560

Mechanical property (TZM)	Elongation(%)	Elastic modulus(GPa)	Yield Strength (Mpa)	Tensile Strength(Mpa)	Fracture toughness(MP·m1/2)
Value	<20	320	560~1150	685	5.8~29.6

TZM (Ti0.5/Zr0.08) High temperature tensile strength and elongation

Temperature/℃	Properties
Temperature/℃	Tensile Strength/MPa	Elongation/%
RT	1140 ~1210	7.5~13.0
1000	700 ~720	5.2
1200	320 ~360	9.0
1300	190 ~210	11.5 ~13.5
1400	140 ~170	11.0 ~16.0

TZM (Ti0.5/Zr0.1)Thermal and electrical properties

Properties	Coefficient of thermal expansion/K-1 (20~100℃)	Thermal conductivity W/m·K	Maximum temperature in air ℃	Resistivity Ω·m
Value	5.3X10-6	126	400	(5.3~5.5)X10-8

TZM Plate Parameters

Thickness (mm)	Width (mm)	Length (mm)
≥0.02	150	L
0.10-0.15	300	1000
0.15-0.20	400	1000
0.20-0.30	650	2540
0.30-0.50	650	2540
0.50-1.0	650	2540
1.0 -2.0	600	2000
2.0 -3.0	600	2000
> 3.0	600	L

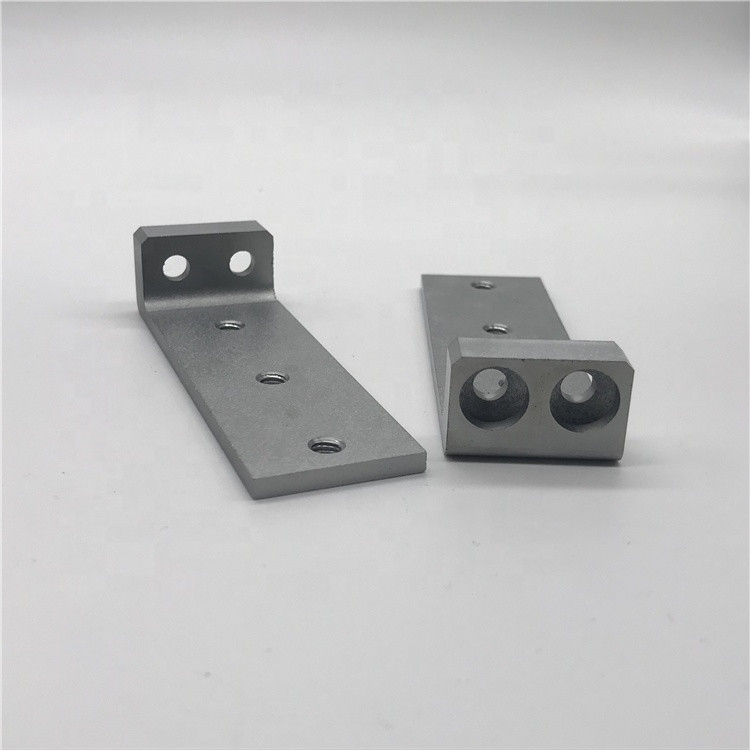

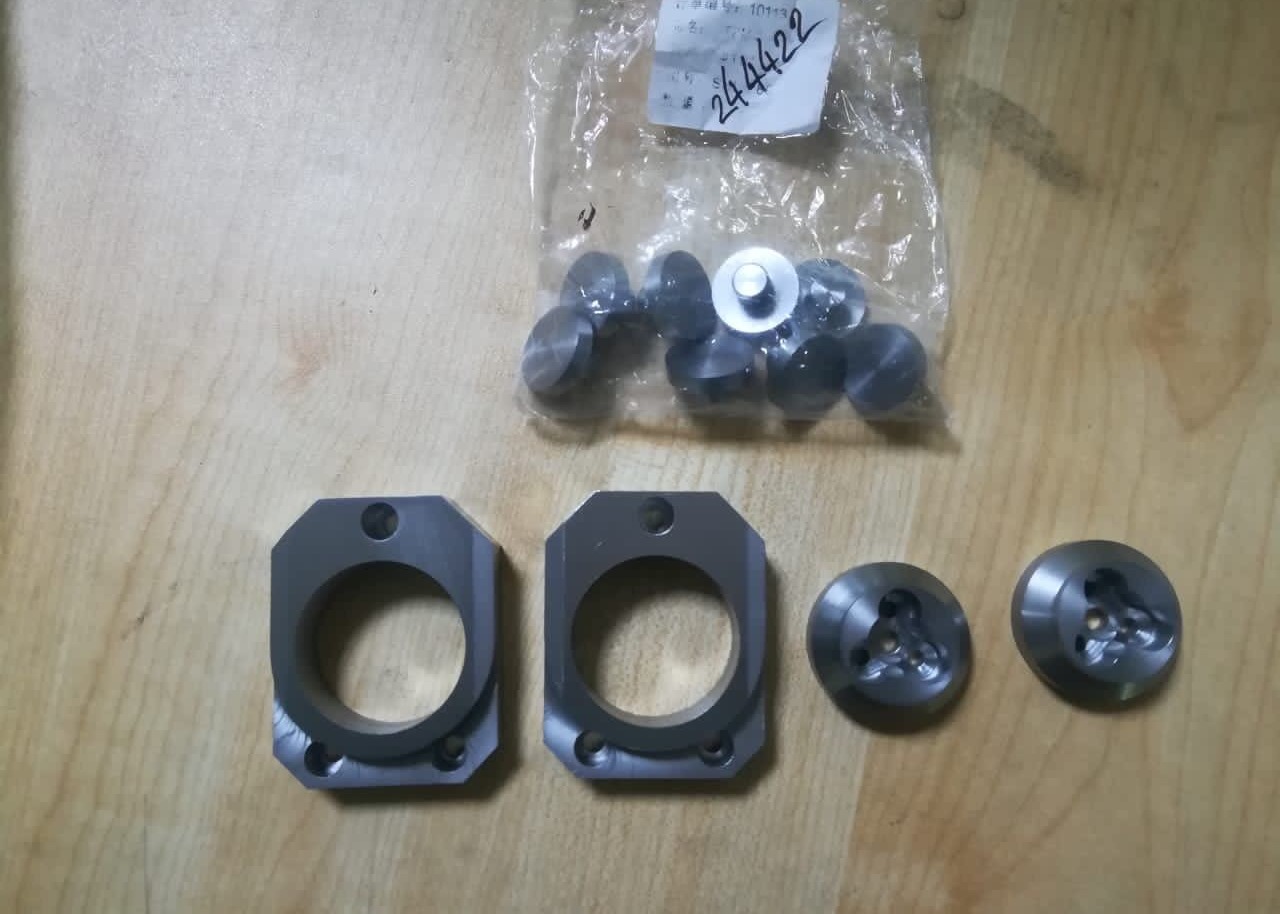

We also can make TZM customized parts according to drawings.
